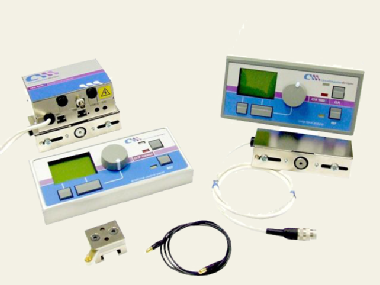

The development team at Circuitmaster Designs

spent thousands of hours developing,

testing and trialing the CFA1000 before finally

giving it the green light. Helped by some of

the industry’s leading companies, the CFA1000

is claimed as a breakthrough by delighted

purchasers and leading engineers.

Flexible machine integration means that the CFA

can be fitted to a wide range of automatic

Processing machines and is retrofitable to all

crimp presses thus protecting your investment

for the future. It is also suitable for use with

all crimp applicators.

The CFA will reduce machine downtime

and production costs by increasing process

throughput and quality. CFA1000 guarantees

100% on line testing with no production rate

impact and its easy intuitive interface reduces

your training costs. The CFA will give guidance to

novice press operators to achieve consistently

high results.

The CFA1000 will alert you to process changes

which will eradicate costly tool breakages. It is

an extremely powerful tool for your own sales

department. Many of the larger wire harness

procurers are now insisting on crimp force

analysis. It is only a matter of time before we

see this trend throughout the entire market.

Designed to cope with the harsh manufacturing

environment, the CFA1000 will detect all

common termination problems: -

• Missing/Bent wire strands

• Incorrect insulation crimp

• Strands outside the main crimp

• Insulation in the main crimp

• Insulation crimp fault

• Crimp misfeed

• Incorrect wire use

The advanced three zone algorithm provides

detailed process analysis whilst the Graphical

Control Panel allows online viewing of the force

curve in real time aiding fault diagnosis. LED

indicators provide a quick

visual indication of the crimp result.
